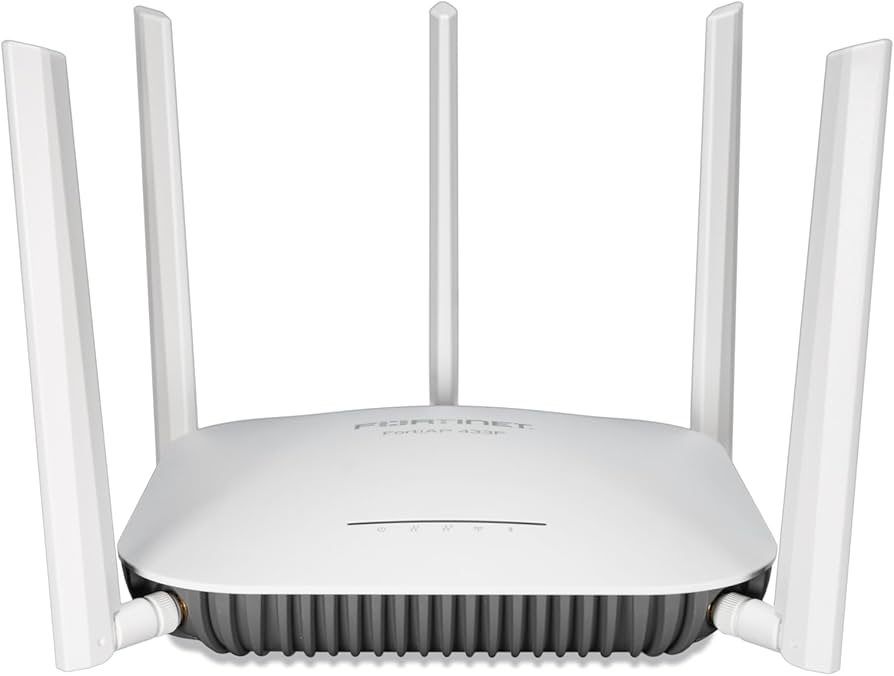

Ponto de Acesso Fortinet FortiAP-433F

Ponto de Acesso Fortinet FortiAP-433F

Especificações:

• Model: FAP-433F
• Type: Indoor Wi-Fi 6 (802.11ax) Access Point
• Radios: Tri-radio (2.4 GHz, 5 GHz, and Scanning Radio) + Bluetooth Low Energy (BLE)
• Antennas: 5 external RP-SMA connectors for dual-band antennas + 1 internal antenna for BLE
• Wireless:
• 802.11 Standard: 802.11a/b/g/n/ac/ax (Wi-Fi 6)
• Frequency Bands:
• 2.4 GHz: 2.400 – 2.4835 GHz
• 5 GHz: 5.150 – 5.250 GHz, 5.250 – 5.350 GHz, 5.470 – 5.725 GHz, 5.725 – 5.850 GHz
• MIMO: 4x4 MU-MIMO on both 2.4 GHz and 5 GHz bands
• Maximum Data Rates:
• 2.4 GHz: Up to 1147 Mbps
• 5 GHz: Up to 2402 Mbps
• Scanning Radio: N/A (for frequency scanning)
• Channel Width: 20/40 MHz (2.4 GHz), 20/40/80/160 MHz (5 GHz)
• Modulation: BPSK, QPSK, QAM64, QAM256, QAM1024
• Transmit Power (Conducted):
• 2.4 GHz: 24 dBm (combined)
• 5 GHz: 23 dBm (combined)
• Simultaneous SSIDs: Up to 16 (14 if background scanning is enabled)
• Security: WPA, WPA2, WPA3, WEP, 802.1x (EAP-TLS, EAP-TTLS/MSCHAPv2, PEAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST), Captive Portal, MAC address filtering
• Interfaces:
• Ethernet Ports:
• 1 x 10/100/1000/2500 Base-T RJ45 (supports PoE+)
• 1 x 10/100/1000 Base-T RJ45 (supports PoE+)
• Console Port: 1 x RJ45 (RS-232)
• USB Port: 1 x Type A
• Physical Characteristics:
• Dimensions: 210 mm x 210 mm x 56.5 mm (8.27 x 8.27 x 2.22 inches)
• Weight: Approximately 0.995 kg (2.19 lbs)
• Mounting: Ceiling and wall mount kit included
• Power:
• Power over Ethernet (PoE): 802.3at (PoE+) on both Ethernet ports (for full functionality and USB support, at least one port needs to be 802.3at). Can operate with reduced functionality (2x2 MIMO, lower Tx power, no USB) if only one port is 802.3af.
• Power Consumption: 24.5 W (operational)
• Other Features:
• Bluetooth Low Energy (BLE): For beaconing and location services
• Scanning Radio: Dedicated radio for continuous background scanning and threat detection
• 802.11k/r/v: For seamless roaming
• OFDMA: Orthogonal Frequency Division Multiple Access for improved efficiency
• BSS Coloring: Spatial Reuse to improve performance in dense environments
• Kensington Lock: Yes
• Management:
• FortiGate Integration: Centralized management via FortiGate Wireless LAN Controller
• FortiAP Cloud: Cloud-based management and provisioning
• Benefits:
• High Performance: Wi-Fi 6 technology for increased capacity and speed.
• Flexible Antenna Options: External antennas allow for optimized coverage.
• Enhanced Security: Integrated with Fortinet Security Fabric for robust security.
• Dual PoE Ports: Provides redundancy and flexible deployment options.
• 2.5 Gbps Ethernet Port: Supports higher backhaul capacity for demanding environments.
• Integrated BLE: Enables location-based services.
• Dedicated Scanning Radio: Improves security and network visibility.

Datasheet com especificação completa
